The Voltaic Systems V70 IoT battery pack is designed to be embedded in hardware applications that require 12V output and solar charging capability.
Features
- 19,200mAh (71Wh) Capacity with LG 18650 Cells
- Unregulated 10-12.6V Output
- Large Input Voltage Range: 14-24V
- MPPT Charge Circuit
- All Standardized Protections Including: Overcharge, Over- & Under-temperature, and Short Circuit
- Built-in "Always On" feature
Specifications
Dimensions: 16cm x 6.4cm x 3.3cm
Weight : 540g
Capacity: 19,200mAh, 71 Watt Hours
Output: 60 Watts Maximum, 10-12.6V Unregulated
Input: 15-23V
Minimum Charge Current: 5mA
Maximum Power Point (MPP): 13V
Input Connector: Molex 43640-0210
Output Connector: Molex 43645-0200
Battery Type: Li-Ion LG 18650
Protection: Short circuit over charge, over discharge, over temperature (45℃ Input Cutoff, 60℃ Output Cutoff), under temperature (0℃ Input Cutoff, -15℃ Output Cutoff)
Always On Mode
Battery features Always On technology and will not shut off when device is drawing low or no power. Self consumption is 0.1mA (1.1mW).
-
MPN:V70
-
Type:Batteries & Chargers
-
Battery:V70
-
Brand:Voltaic Systems
-
Product Code:V70KIT
-
Weight:0.45kg

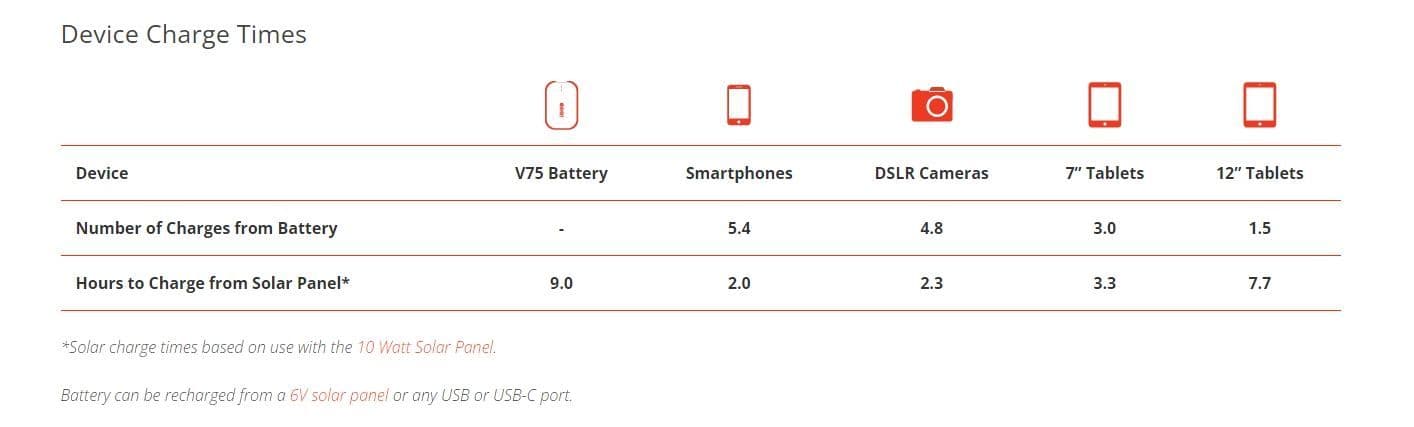

Tablets: Charges all tablets that are powered by USB including Apple iPads and Samsung Tablets. Will not charge tablets that charge at 12 or 16 Volts such as a Microsoft Surface.
Digital Cameras: Charges both DSLRs and cameras that charge from USB. For DSLRs, an optional camera charger cradle that matches your camera battery is required.
Microcontrollers: Compatible with USB powered microcontrollers including Arduino, Raspberry Pi and more.
