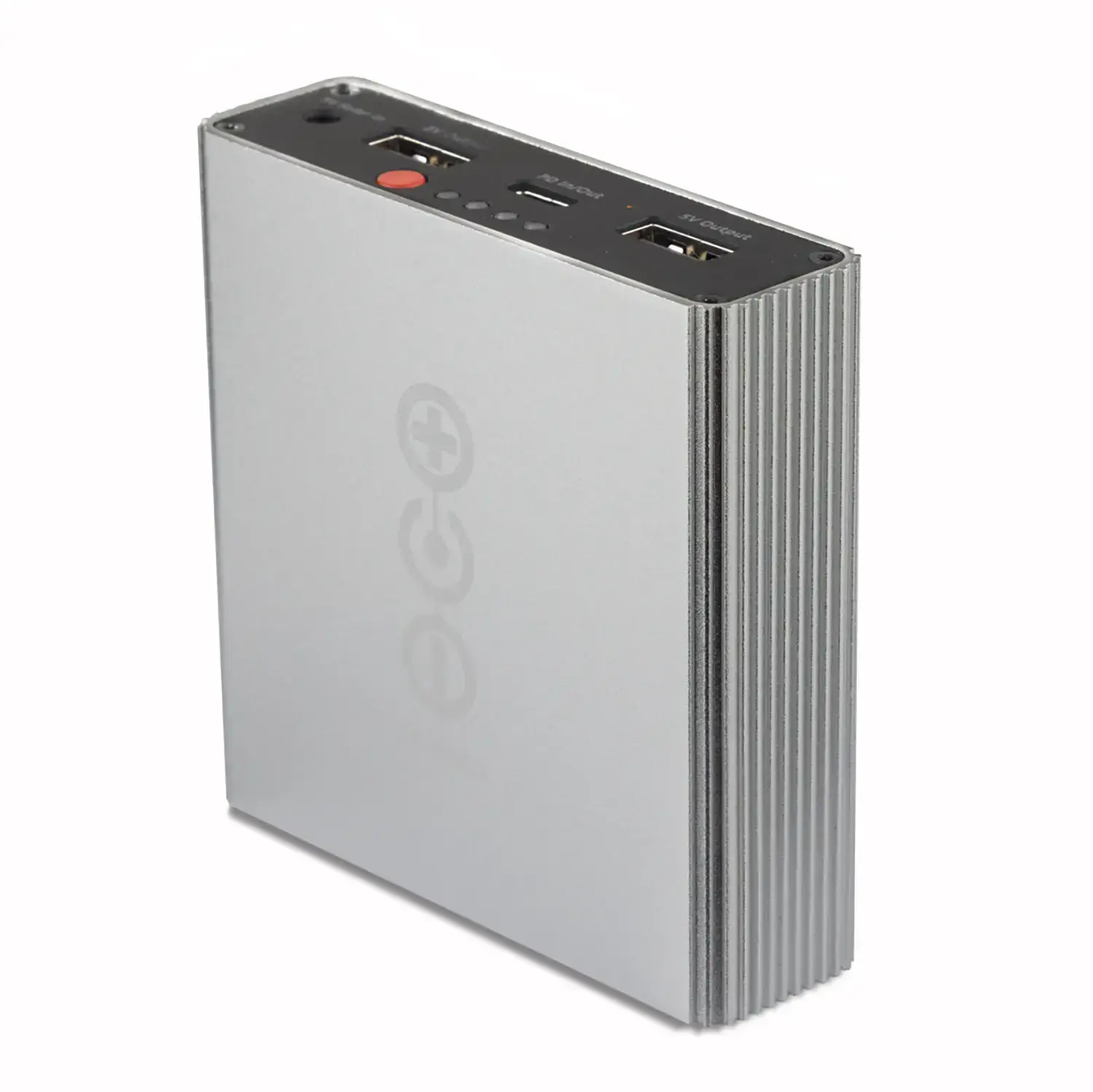

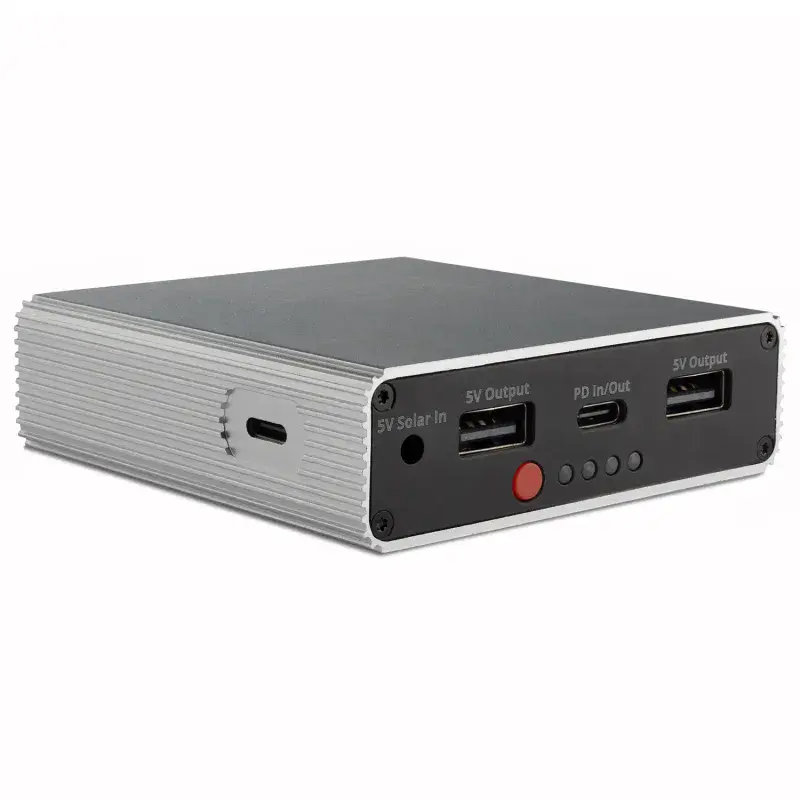

The Voltaic Systems V25 USB Battery Pack is a 6,700mAh power bank charger for smartphones and other handheld devices that is optimised for solar charging and features Always On technology.
The V25 has been updated with a sleek and durable aluminium body and now has a direct solar input port. The dual USB-A outputs allow simultaneously charging with an additional top USB-C PD input/output.
The V25 features Voltaic’s ‘Always On’ mode via the two top USB-A outputs which ensures the battery will not shut off even when a device is drawing low or no power making it ideal for IoT devices & timelapse projects.

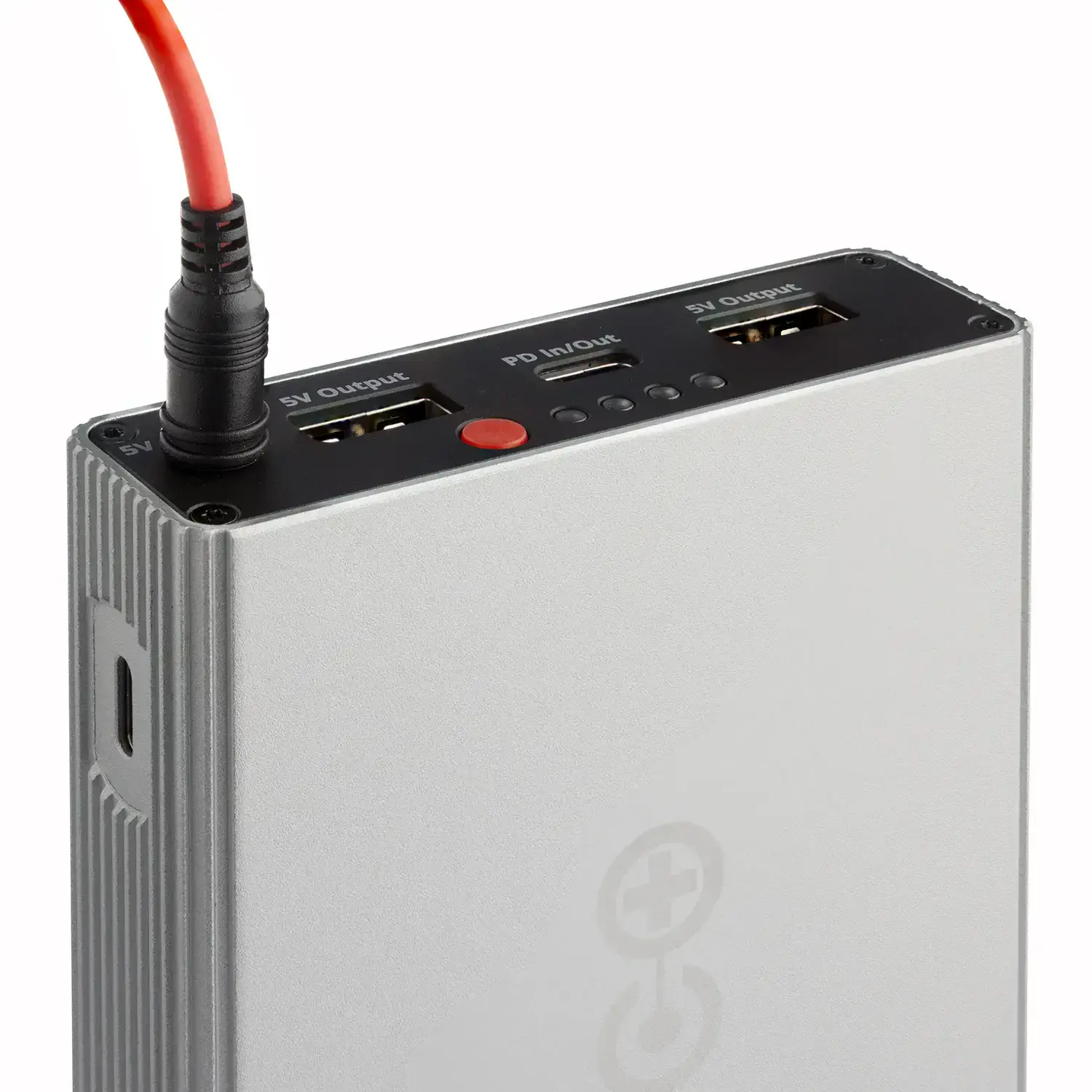

The battery can be recharged via a solar panel or USB-C side port with the included charging cable and also allows for pass through charging.
Features
- Universal battery pack for smartphones and USB devices
- Optimised for solar charging
- Pass through charging
- Recharge directly via solar panel or USB-C side port

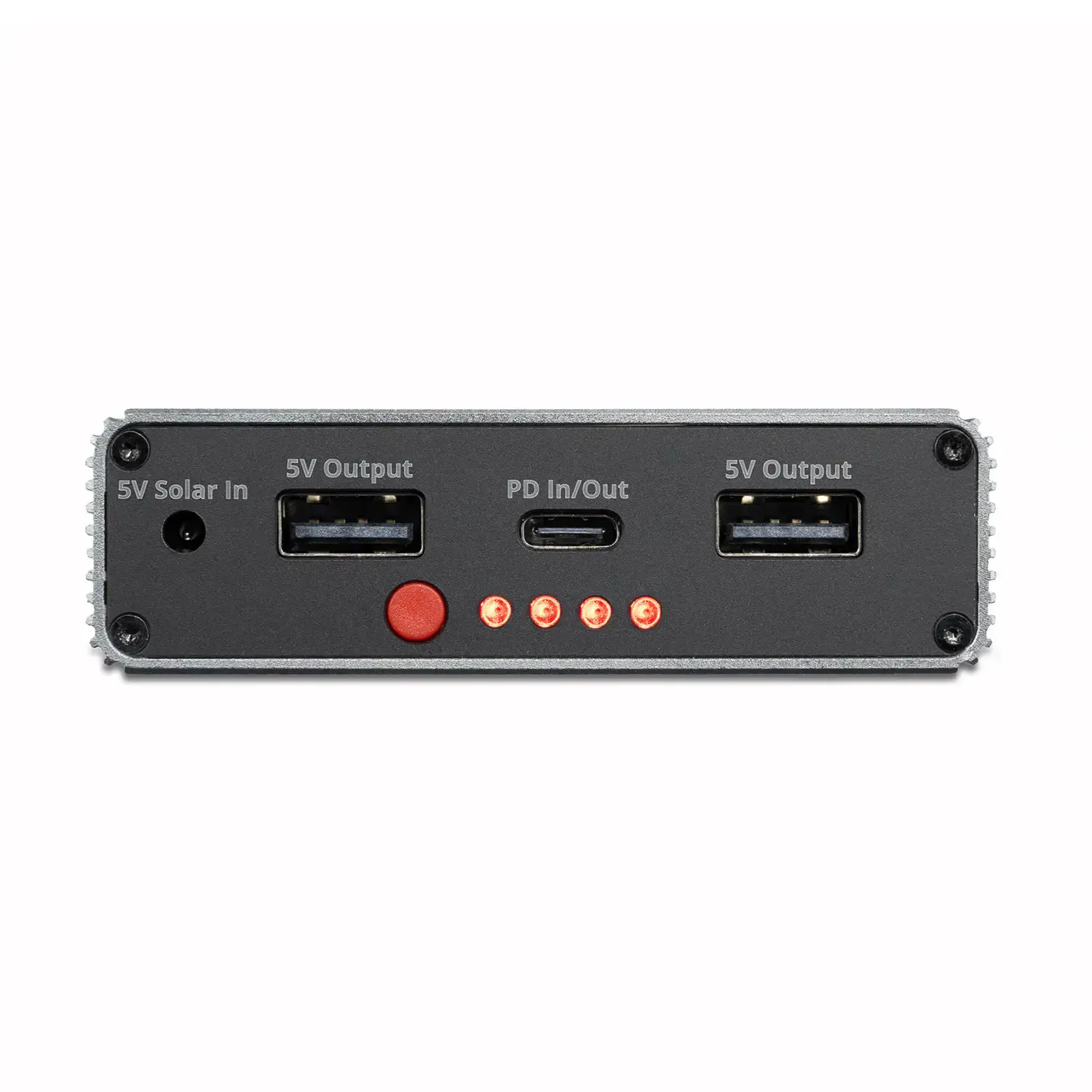

- 2X USB-A Ports 1X USB-C PD
- Safe for air travel (Carry-on Luggage Only)
- Always On mode designed for IoT and Time-Lapse Projects
- Built-in temperature and charge protection
Specifications
Capacity: 6,700mAh, 24 Watt Hours
Battery Type: Li-Ion
Dimensions: 8cm x 8.2cm x 2.4cm
Weight: 230g
Output: 5V/2A , 3A max (2 outputs)
USB-C Input Solar: 5-6V/2A
3.5x1.1mm Solar Input Port: 5-6V/2A
USB-C PD Input / Output (Top USB-C port): 5V/4A, 9V/2.2A, 12V/1.6A
Minimum Charge Current: 5mA (indicators turn on at 60mA)
Maximum Power Point (MPP): 5.2V
Testing & Certification: UN38.3 , IEC 62133 , CE , FCC
Protection: Short circuit over charge, over discharge, over temperature (45℃ Input Cutoff, 60℃ Output Cutoff), under temperature (0℃ Input Cutoff, -15℃ Output Cutoff)
-
MPN:V25
-
Battery:V25
-
Brand:Voltaic Systems
-
Product Code:V25KIT
-
Weight:0.3kg
Battery features updated Always On technology on the 2X USB-A ports. The output will not shut off even if your device is drawing low or no power. There is no low current cutoff.
To stop charging your device, double tap the Power Level Button or disconnect from the battery. To resume charging, tap the Power Level Button once.
Battery recovers into Always On mode after discharge, over-temperature and under-temperature events. Power consumption in Always On mode is approximately 7mA (26mW).
Always On is not active when charging from the USBC-PD input port on the top of the battery. Always On output is active when there is no input or when charging from the input port on the side of the battery.
